This standard specifies seamless and welded steel elbows and bends that are intended to be butt welded to pipes. Although the wall thicknesses specified correspond to those of the pipes,these fittings do not permit operation at the same internal pressure as the pipe welded on, ¡.e. they have a reduced pressure factor.
DIN 26051 Carbon Steel Butt Weld 45 Deg Elbow
material
St37.0, St35.8I, St35.8III, 15Mo3, 13CrMo44, 10CrMo910, 1.4541,1.4571

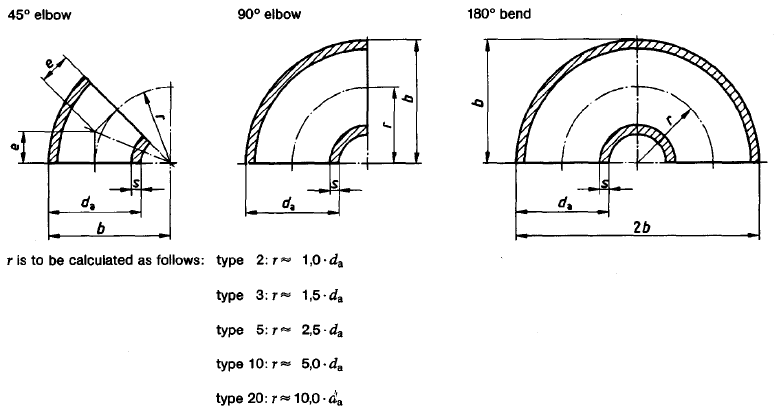

DIN 26051 Elbow
60,3 x 3,6
| OD/wall thess d x s | radius a | weight / kg |
| 13,5 x 2,3 | 20,0 | 0,02 |
| 15,0 x 1,5 | 27,5 | 0,02 |
| 17,2 x 1,6 | 25,0 | 0,03 |
| 17,2 x 2,3 | 25,0 | 0,04 |
| 18,0 x 1,5 | 22,5 | 0,02 |
| 18,0 x 2,0 | 22,5 | 0,03 |
| 20,0 x 1,5 | 25,0 | 0,03 |
| 20,0 x 1,6 | 28,0 | 0,03 |
| 21,3 x 2,0 | 28,0 | 0,04 |
| 21,3 x 2,6 | 28,0 | 0,06 |
| 25,0 x 2,0 | 27,5 | 0,05 |
| 25,0 x 3,0 | 27,5 | 0,07 |
| 26,9 x 2,0 | 28,0 | 0,06 |
| 26,9 x 2,3 | 28,0 | 0,07 |
| 26,9 x 2,6 | 28,0 | 0,08 |
| 26,9 x 3,2 | 28,0 | 0,10 |
| 28,0 x 1,5 | 32,5 | 0,06 |
| 28,0 x 2,0 | 32,5 | 0,07 |
| 30,0 x 2,0 | 33,5 | 0,07 |
| 30,0 x 3,0 | 33,5 | 0,11 |
| 31,8 x 2,6 | 35,0 | 0,10 |
| 33,7 x 2,0 | 38,0 | 0,10 |
| 33,7 x 2,6 | 38,0 | 0,12 |
| 33,7 x 3,2 | 38,0 | 0,14 |
| 33,7 x 4,0 | 38,0 | 0,19 |
| 35,0 x 2,0 | 45,0 | 0,12 |
| 38,0 x 2,0 | 45,0 | 0,13 |
| 38,0 x 2,6 | 45,0 | 0,16 |
| 40,0 x 2,0 | 45,0 | 0,16 |
| 40,0 x 3,0 | 45,0 | 0,24 |
| 42,4 x 2,0 | 47,5 | 0,16 |
| 42,4 x 2,6 | 47,5 | 0,19 |
| 42,4 x 3,6 | 47,5 | 0,27 |
| 42,4 x 4,0 | 47,5 | 0,32 |
| 44,5 x 2,0 | 51,0 | 0,17 |
| 44,5 x 2,6 | 51,0 | 0,22 |
| 48,3 x 2,0 | 57,0 | 0,22 |
| 48,3 x 2,6 | 57,0 | 0,26 |
| 48,3 x 3,2 | 57,0 | 0,32 |
| 48,3 x 3,6 | 57,0 | 0,37 |
| 48,3 x 4,0 | 57,0 | 0,42 |
| 48,3 x 5,0 | 57,0 | 0,52 |
| 51,0 x 2,6 | 63,5 | 0,35 |
| 51,0 x 2,9 | 63,5 | 0,42 |
| 51,0 x 4,0 | 63,5 | 0,62 |
| 54,0 x 2,0 | 70,0 | 0,34 |
| 57,0 x 2,0 | 72,0 | 0,34 |
| 57,0 x 2,6 | 72,0 | 0,39 |
| 57,0 x 2,9 | 72,0 | 0,48 |
| 57,0 x 4,0 | 72,0 | 0,65 |
| 57,0 x 6,3 | 72,0 | 0,96 |
| 60,3 x 2,0 | 76,0 | 0,34 |
| 60,3 x 2,6 | 76,0 | 0,44 |
| 60,3 x 2,9 | 76,0 | 0,49 |
| 76,0 | 0,62 | |
| 60,3 x 4,0 | 76,0 | 0,67 |
| 60,3 x 5,0 | 76,0 | 0,82 |
| 60,3 x 5,6 (5,54) | 76,0 | 0,90 |
| 60,3 x 8,0 | 76,0 | 1,34 |
| 60,3 x 8,74 | 76,0 | 1,45 |
| 60,3 x10,0 | 76,0 | 1,64 |
| 63,5 x 2,6 | 82,5 | 0,51 |
| 70,0 x 2,0 | 92,0 | 0,50 |
| 70,0 x 2,6 | 92,0 | 0,60 |
| 70,0 x 2,9 | 92,0 | 0,72 |
| 70,0 x 4,0 | 92,0 | 1,00 |
| 73,03 x 3,05 | 95,0 | 1,00 |
| 73,03 x 5,16 | 95,0 | 1,39 |
| 76,1 x 2,0 | 95,0 | 0,62 |
| 76,1 x 2,6 | 95,0 | 0,77 |
| 76,1 x 2,9 | 95,0 | 0,88 |
| 76,1 x 3,6 | 95,0 | 1,08 |
| 76,1 x 4,5 | 95,0 | 1,32 |
| 76,1 x 5,0 | 95,0 | 1,47 |
| 76,1 x 6,3 | 95,0 | 1,76 |
| 88,9 x 2,0 | 114,5 | 0,81 |
| 88,9 x 2,6 | 114,5 | 1,02 |
| 88,9 x 3,6 | 114,5 | 1,38 |
| 88,9 x 4,0 | 114,5 | 1,76 |
| 88,9 x 5,6 (5,49) | 114,5 | 1,87 |
| 88,9 x 7,62 | 114,5 | 3,03 |
| 101,6 x 3,05 | 152,4 | 1,85 |
| 101,6 x 5,74 | 152,4 | 2,91 |
| 108,0 x 3,0 | 142,5 | 1,85 |
| 108,0 x 3,6 | 142,5 | 2,07 |
| 108,0 x 5,0 | 142,5 | 2,75 |
| 108,0 x 6,3 | 142,5 | 3,80 |
| 114,3 x 2,6 | 152,5 | 1,60 |
| 114,3 x 3,0 (2,9) | 152,5 | 2,00 |
| 114,3 x 3,6 | 152,5 | 2,35 |
| 114,3 x 4,5 | 152,5 | 3,00 |
| 114,3 x 6,3 (6,02) | 152,5 | 4,20 |
| 114,3 x 8,56 | 152,5 | 5,90 |
| 133,0 x 4,0 | 181,0 | 3,62 |
| 139,7 x 4,0 | 190,5 | 4,09 |
| 139,7 x 7,1 | 190,5 | 7,10 |
| 159,0 x 4,5 | 216,0 | 5,82 |
| 159,0 x 6,3 | 216,0 | 9,00 |
| 168,3 x 4,5 | 228,5 | 6,52 |
| 168,3 x 5,0 | 228,5 | 7,20 |
| 168,3 x 7,1 | 228,5 | 10,25 |
| 219,1 x 6,3 | 305,0 | 16,40 |
| 219,1 x 8,18 | 305,0 | 22,40 |
