Tube-sheet/Tubesheet for heat exchanger


tube-sheet-for-heat-exchanger

tube-sheet-for-heat-exchanger

Tube sheet is the support for the tubes in the heat exchanger.

Size:Diameter (100~3000)mm  * Height / thickness (20~180)mm

Materials:Carbon steels, stainless steels, duplex steels,alloy steels.

Standard: The tube sheet should be customizely designed by the engineer specially for the equipments and projects. Discs and tube sheets can be delivered in pre-machined and finished machined condition. Complete whole drilling is available.

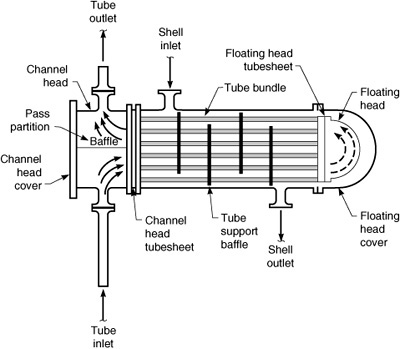

tubesheet-drawing-in-heat-exchanger

tubesheet-drawing-in-heat-exchanger

Application:Pressure vessel,heat exchanger equipment.

Haihao Flange Factory can produce the tubesheet according to our customers’ requirement.
