What is a barred tee or pigged tee?

Barred tee or pigged tee is a pipe fitting that is used in a pig launcher or receiver system in a piping system to ensure the pig could pass the branch safely.

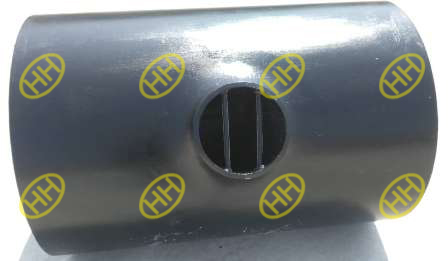

Barred tee or pigged tee finished in Haihao Group

How to design and produce the barred tee or pigged tee?

The shape of a barred tee is like a butt welding pipe tee with some bars in the branch of the tee.The bars are used for preventing the pig from running out in the branch of the main pipe.It is commonly used in a pigged pipeline,so it is also called pigged tee.

The bars in the branch should be installed flush with the inside diameter of main pipe.Commonly the bars are welded with the tees.

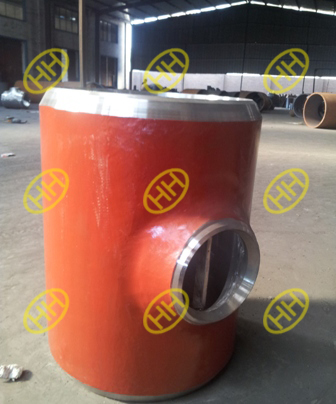

Barred tee or pigged tee finished in Haihao Pipe Fitting Factory

Hebei haihao steel pipe fittings factory has more than 20 years experiences in the pipe tee and barred tee production, Our engineer and technicians could design and production the barred tee(pigged tee) as per your requirements and the piping system conditions.Welcome to contact us for future information.

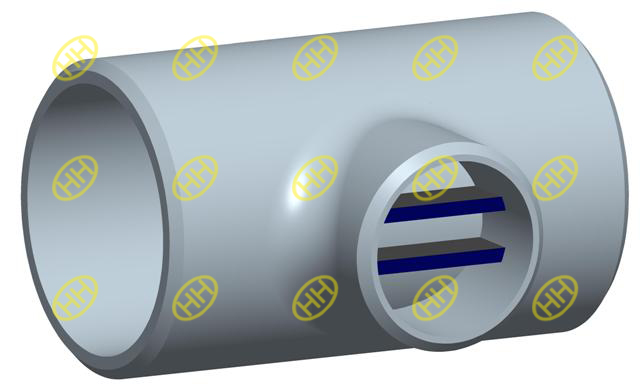

Barred tee designing in Haihao Group
